The 802.11 frame format is used in wireless LANs (Wi-Fi) and differs from Ethernet due to the wireless environment's unique requirements, like mobility and signal integrity.

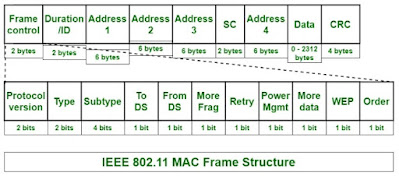

Structure of an 802.11 Frame
Frame Control (2 bytes):Contains protocol version, type/subtype, and flags (e.g., retry, power management).
Duration/ID (2 bytes):
Specifies the time for the medium to be reserved.
Used for Network Allocation Vector (NAV) and managing communication.
Specifies the time for the medium to be reserved.
Used for Network Allocation Vector (NAV) and managing communication.
Address Fields (6 bytes each):
Address 1: Destination MAC address (receiver).
Address 2: Source MAC address (transmitter).
Address 3: MAC address of the Distribution System (e.g., router or access point).
Address 1: Destination MAC address (receiver).
Address 2: Source MAC address (transmitter).
Address 3: MAC address of the Distribution System (e.g., router or access point).
Sequence Control (2 bytes):
Helps manage fragments and reassemble frames in the correct order.
Helps manage fragments and reassemble frames in the correct order.
Payload/Data (Variable):
Contains the actual data or message to be delivered.
Frame Check Sequence (FCS) (4 bytes):
CRC for error checking and ensuring data integrity.
Contains the actual data or message to be delivered.
Frame Check Sequence (FCS) (4 bytes):
CRC for error checking and ensuring data integrity.
